Groundbreaking TA instrument with high sensitivity to advance complete understanding of short-lived species and excited states in photochemical and photocatalytic reactions.
RAPID DATA COLLECTION. COMPACT. EASY-TO-USE.

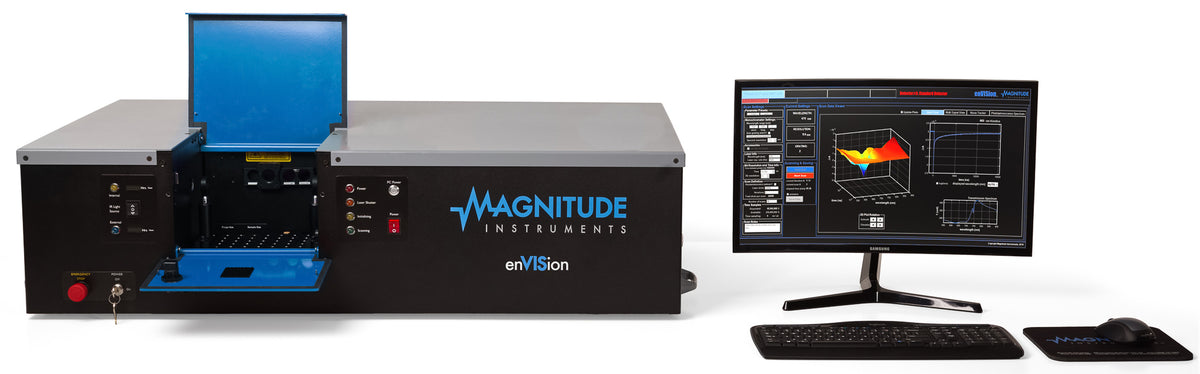

Meet the enVISion:
A UV/Visible/Near-IR Transient Absorption Spectrometer.
It’s the game-changing TA spectrometer electrochemists, biochemists, material scientists, photovoltaic researchers, shared user facilities, and more have been waiting for.
The enVISion delivers broadband nanosecond TA spectroscopy that seamlessly probes the UV, visible, and near-infrared spectrum with 5 ns time resolution and up to milliseconds of delay time. Record the entire time axis with a single laser shot for fast data collection with unprecedented sensitivity. All from an all-in-one instrument that’s as easy to use as a UV-Vis spectrophotometer; that fits comfortably on any table or lab bench.
DESKTOP SPECTROMETER FOR ANY LEVEL OF EXPERTISE
State-of-the-Art nanosecond TA Spectroscopy
Fully integrated, one-box system includes everything:
- Probe light source
- Excitation laser
- All optical components
- Large, modular sample compartment
- All electronics
- Detection system
- High performance computer
- Analysis & automation software
State-of-the-art TA spectroscopy measurements can now be performed with little training, making the system ideal for user facilities, multi-disciplinary research groups, undergraduate labs as well as advanced users seeking the best performance in nanosecond TA spectroscopy.
enVISion Specifications
|
Detection Limits (Single Frequency) |
10-7ΔO.D. (1 hr); 10-6ΔO.D.(<1 min) |
|
Time Resolution |
≥ 5 ns (250 - 1700 nm) |
|
Time Range |
Up to 130 ms (depending on laser rep-rate) |
|
Spectral Resolution |
1 - 10 nm (automated control) |
|
Spectral Range |
300 - 2550 nm |
|
Internal Excitation Laser Repetition Rate |
Highest available ranges (lower rep-rate ranges available) |
|
Excitation Source (Wavelength) |
Internal pulsed Nd:YAG laser (1064, 532, 355, 266, or dual 355/532 nm) |
|
Sampling Rate |
Up to 2 ns |
* Specifications listed here are for instrument utilizing our standard excitation laser. Instruments can be customized to meet specific customer needs. Due to our continuous product improvement, minimum specifications may change without notice. Magnitude Instruments’ products come with a standard 1 year warranty on equipment defects.
