UNRIVALED SENSITIVITY FOR A LOW-COST

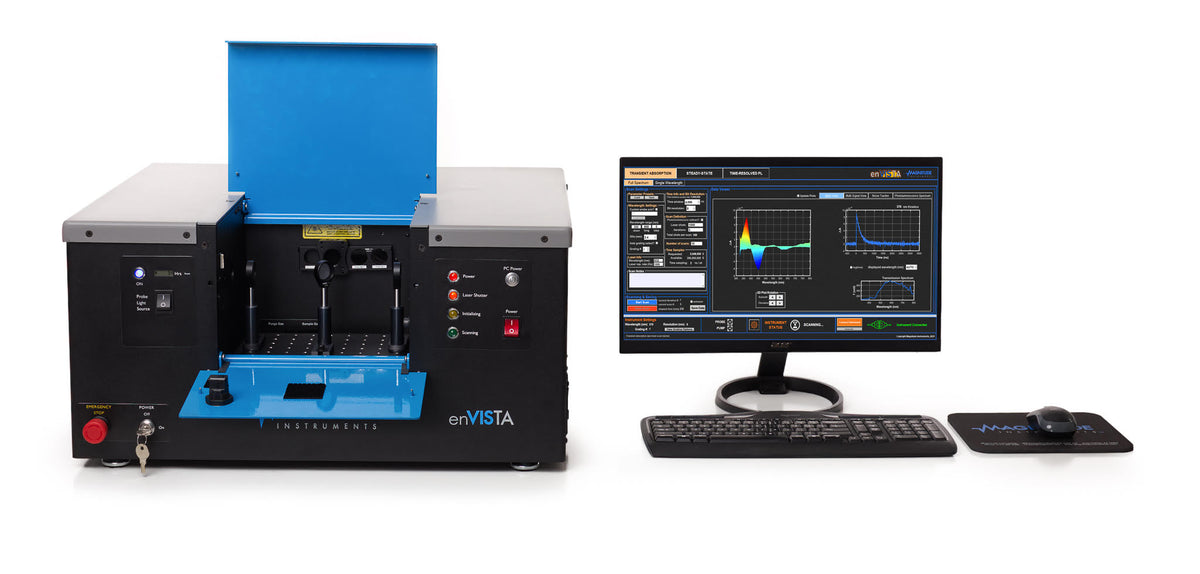

Meet the enVISTA:

The “fun-size” UV/visible/near-IR transient absorption spectrometer – all the wavelengths at half the size.

The enVISTA is a nanosecond transient absorption spectrometer with standard probe wavelength ranges of 300-1050 nm and 800-1650 nm. Collect better data in less time than ever with this ultra compact, all-in-one, spectrometer that is simple to operate and even easier to maintain.

Put the enVISTA to work and take in the beauty of more accurate and reliable results.

Let's Talk

TURNKEY & EASY TO OPERATE

An Ideal TA Spectroscopy Solution for All

With the enVISTA, all users have access to the best transient absorption instrument available.

The fully integrated system includes everything:

  • Probe light source
  • Excitation laser
  • All optical components
  • Large, modular sample compartment
  • All electronics
  • Detection system
  • High performance computer
  • Analysis & automation software

More affordable and compact while being 100% turnkey and easy to operate, the enVISTA is ideal for everyone, from research groups to instructional laboratories.

Learn More

enVISTA Specifications

Detection Limits (Single Frequency)

10-7ΔO.D. (1 hr); 10-6ΔO.D.(<1 min)

Time Resolution

5 ns

Time Range

Up to 130 ms (depending on laser rep-rate)

Spectral Resolution

1 - 10 nm (automated control)
5 nm recommended

Spectral Range

300 – 1050 nm
or
800 – 1650 nm

Internal Excitation Laser Repetition Rate

Highest available ranges (lower rep-rate ranges available)
• 0.4 - 18 kHz variable, automated (1064 or 532 nm)
• 0.12 - 6 kHz variable, automated (dual 355 and 532 nm)
• 0.24 - 10 kHz variable, automated (266 nm)

Excitation Source (Wavelength)

Internal pulsed Nd:YAG laser laser (1064, 532, 355, 266, or dual 355/532 nm)
Compatible with a wide range of external lasers

Sampling Rate

Up to 2 ns

* Specifications listed here are for instrument utilizing our standard excitation laser. Instruments can be customized to meet specific customer needs. Due to our continuous product improvement, minimum specifications may change without notice. Magnitude Instruments’ products come with a standard 1 year warranty on equipment defects.

  • EXPLORE OUR OTHER REVOLUTIONARY SPECTROMETERS

Curious About the enVISTA? Schedule a Demo Measurement!

Schedule an in-person or virtual demo today with the inventors of our technology and find out how you can gain a scientific advantage.
