RAPID DATA COLLECTION. COMPACT. EASY-TO-USE.

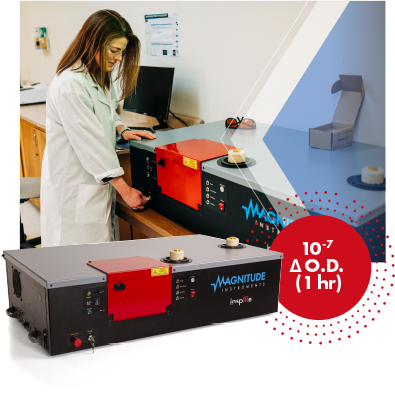

Meet the inspIRe:

An all-in-one mid-IR transient absorption spectrometer.

Introducing the first broadband nanosecond mid-IR TA spectrometer in a true one-box instrument, featuring an integrated pump laser, optical components, and electronics. The inspIRe, with its patented noise suppression technology, achieves a groundbreaking 100 ΔnanoO.D. detection limit and full transient absorption data over both time and wavelength, revolutionizing mid-IR TA spectroscopy.

This compact, all-in-one instrument offers quick data collection, rapid sample scanning, and high throughput, all without the need for extensive training or maintenance. It's ready to go whenever your sample is, requiring no dedicated optics lab or complex laser maintenance.

Let's Talk

BETTER. FASTER. EASIER.

An All-in-One TA Spectrometer

With the enVISTA, all users have access to the best transient absorption instrument available.

The fully integrated system includes everything:

  • Probe light source
  • Excitation laser
  • All optical components
  • Large, modular sample compartment
  • All electronics
  • Detection system
  • High-performance computer
  • Analysis & automation software

State-of-the-art mid-IR TA spectroscopy measurements can now be performed with little training, making the system ideal for user facilities, multi-disciplinary research groups, undergraduate labs, as well as advanced users seeking top-level performance.

Learn More

inspIRe Specifications

Detection Limits (Single Frequency)

10-7ΔO.D. (1 hr); 10-6ΔO.D.(<1 min)

Time Resolution

• ≤ 5 ns: Broadband detector (bandpass)
• ≥ 35 ns: Spectral detector ( monochromator)

Time Range

Up to 130 ms (depending on laser rep-rate)

Spectral Resolution

2.5 - 20 cm-1 (automated control)
10 cm-1 recommended

Spectral Range

2 - 11.7 μm (850 - 5000 cm-1)

Internal Excitation Laser Repetition Rate

Highest available ranges (lower rep-rate ranges available)
• 0.4 - 18 kHz variable, automated (1064 or 532 nm)
• 0.12 - 6 kHz variable, automated (dual 532/355 nm or 355 nm)
• 0.24 - 10 kHz variable, automated (266 nm)

Excitation Source (Wavelength)

Internal pulsed Nd:YAG laser (1064, 532, 355, 266, or dual 532/355 nm)
Compatible with a wide range of external lasers

Sampling Rate

Up to 2 ns

* Specifications listed here are for instrument utilizing our standard excitation laser. Instruments can be customized to meet specific customer needs. Due to our continuous product improvement, minimum specifications may change without notice. Magnitude Instruments’ products come with a standard 1 year warranty on equipment defects.

  • EXPLORE OUR OTHER REVOLUTIONARY SPECTROMETERS

Let the inspIRe Revolutionize Your Work. Schedule a Demo Measurement!

Schedule an in-person or virtual demo today with the inventors of our technology and find out how you can gain a scientific advantage.
